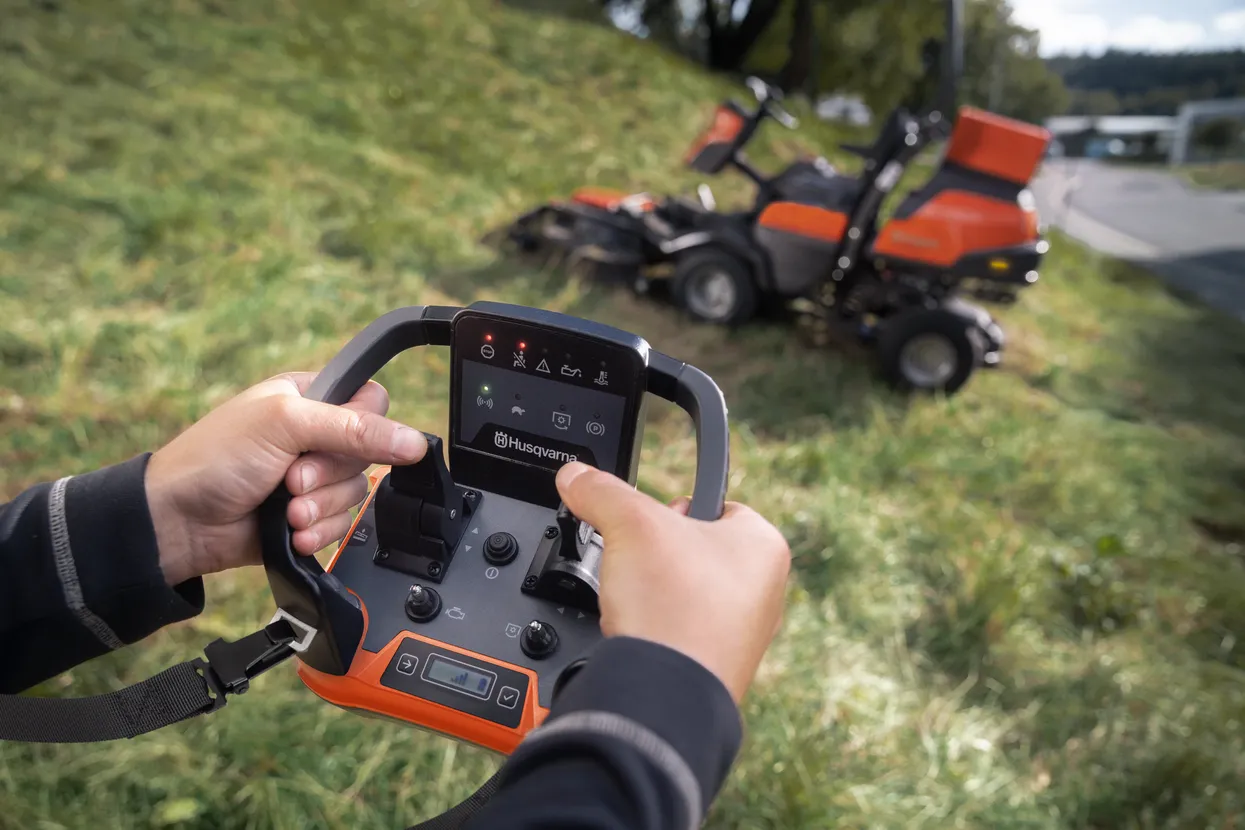

FlexiDrive
Through the included remote-control unit, the XR-model can manage mowing on difficult and sloped areas where seated operation is excluded. Switching the machine's driving characteristics from operator seated mode to remote mode is done within 30 seconds. For safety reasons, the machine can only be operated remotely when the operator’s seat is vacant and the remote-control is connected to the machine.
Чітке кермування
Унікальна шарнірна система рульового управління забезпечує поворот задньої пари коліс. Це гарантує відмінну маневренність та мінімальний радіус повороту.
All-Wheel Drive (AWD)

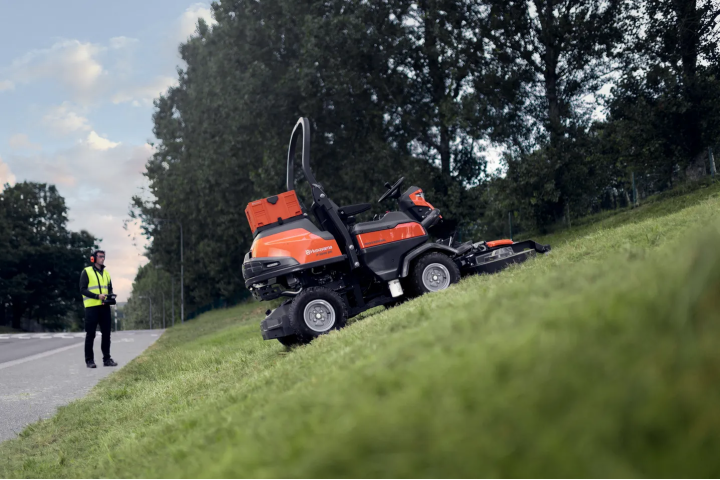

The machine’s low center of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability.

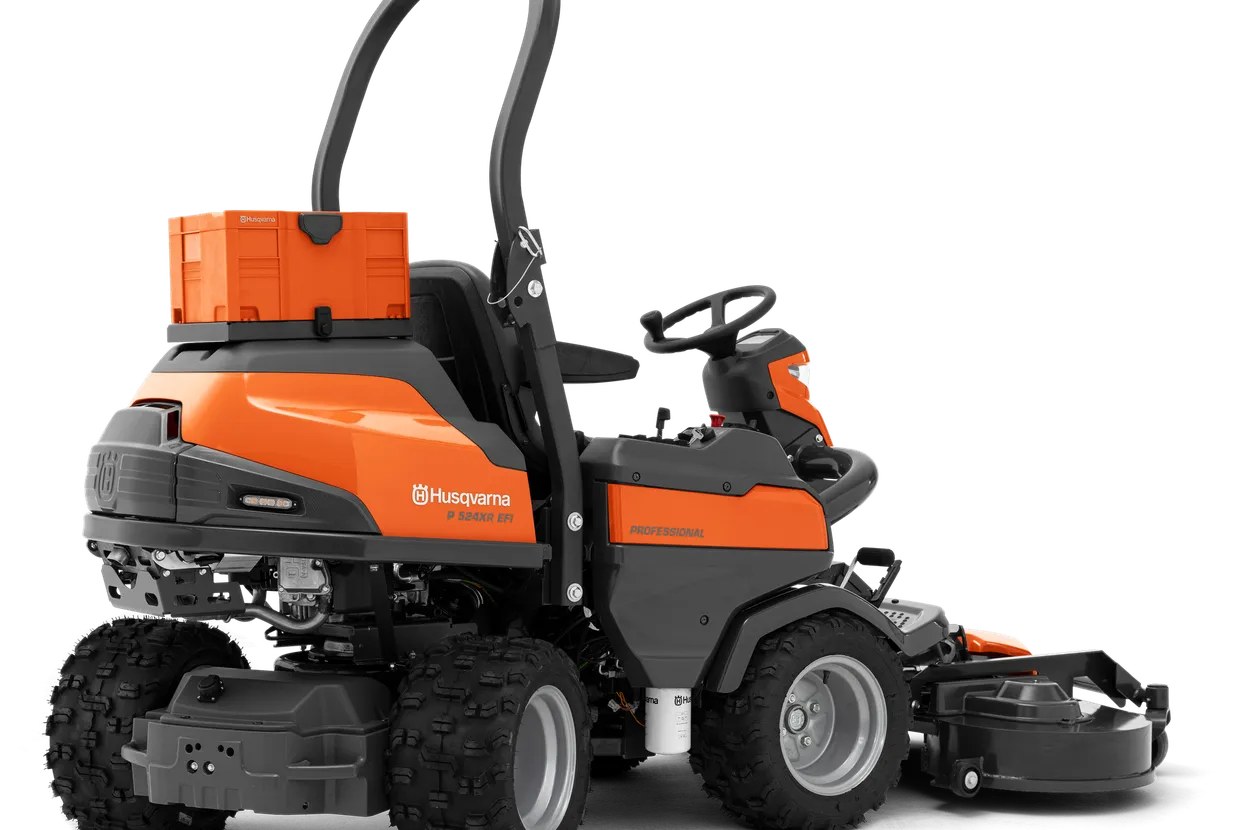

Toolbox for remote-control unit
Mounted on the engine hood rails, the toolbox for remote-control unit is designed to protect the FlexiDrive unit and ensure it stays easily within reach. The toolbox provides protection and space to safely store the transmitter, charger, batteries and neck strap. It can easily be detached when needed.
Durable ladder frame
Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability.
Hydraulic power steering
Heavy-duty hydraulic-cylinder power steering makes driving less strenuous.
EFI-engine by Kawasaki
Equipped with a Kawasaki EFI-engine with overhead 90° valves. Controls the fuel injection and adjusts the ignition timing to assure maximum engine power with the lowest amount of exhaust emissions and the lowest fuel consumption.
Versatile usage
A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round.
Quick coupling
Unique quick coupling allows attachments to be changed quickly and efficiently without tools.
Trimming ability
The front-mounted cutting deck gives excellent overview of the working area, enabling precise, close-up trimming.
Compact design
The compact size together with the unique articulated steering makes it easy to manoeuvre the machine in narrow spaces and tricky areas.
Mowing accessibility
The low profile front-mounted cutting deck gives unbeatable accessibility in under fences, bushes, park benches etc.
Ergonomic operation
Ergonomic operator’s interface for a comfortable ride during long working hours.
Easy-access controls
Operator environment designed around the user. The control panel is raised with all controls ergonomically positioned for easy access. The most frequently used controls are positioned at the front while controls used less often are positioned further back.
Великі колеса
Всі 4-чотири колеса мають розмір 16-дюймів (передні і задні) для максимальної прохідності та комфорту під час руху.
Dual LED lights
Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote.

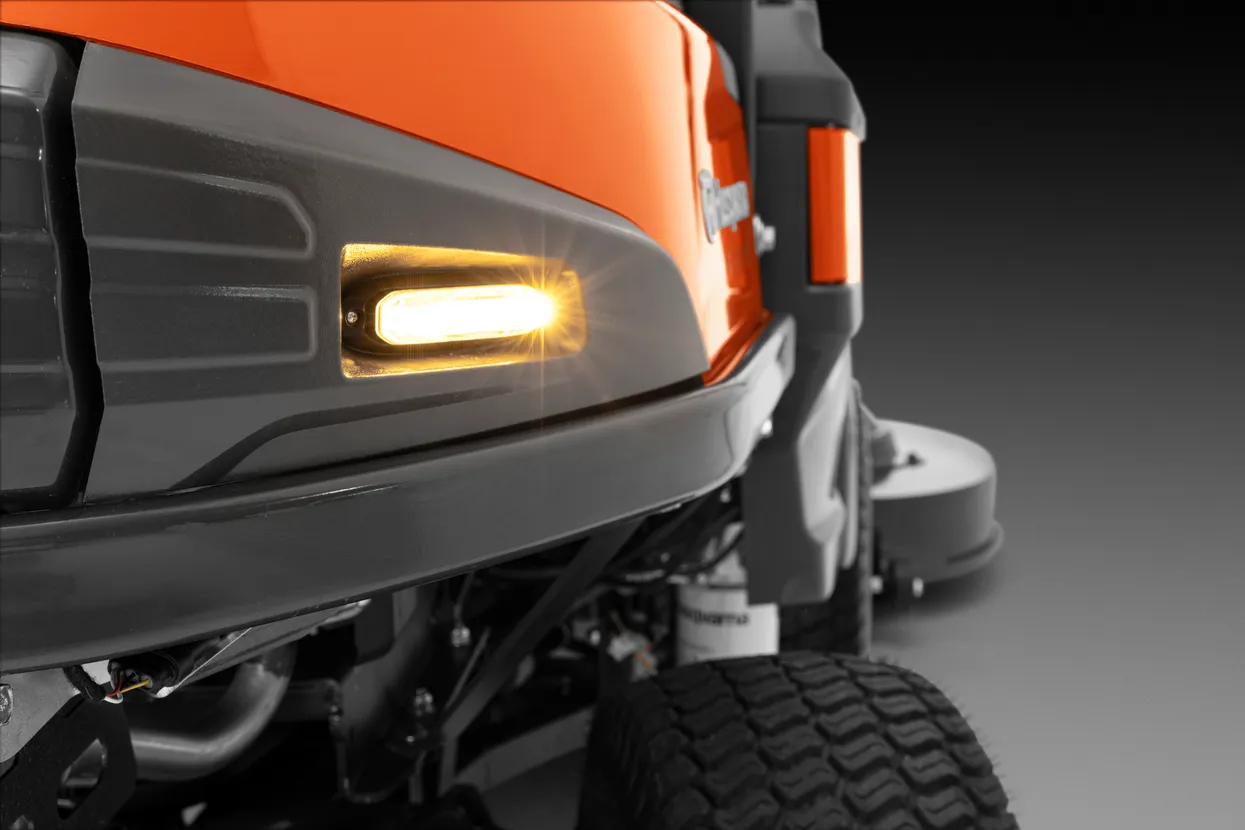

Integrated warning lights
Integrated warning lights are positioned at the front and at the rear for 360° visibility and to make bystanders aware that the machine is in operation. The lights can be activated manually from the control panel. Activates automatically when switching to remote mode.
Electric engaged parking brake
Parking brake with electric engagement enables safe handling in seated mode by operator as well as remote mode using the FlexiDrive remote control unit (P 524XR EFI).
Roll Over Protective Structure (ROPS)
The vehicle is equipped with a Roll Over Protective Structure (ROPS) and seat belts certified to five international standards including OSHA and SAE requirements. The ROPS ensures a safe ride for the operator.
Power outlet
Electrical front- and rear outlets for power and control of attachments. Simple installation and only needs to be installed once, fits all attachments requiring electric control. Kit includes power outlet, electric wiring and switches for the control panel (available as separate accessory).
Commercial graded transmission
High-specified variable piston pumps with separate gear boxes for front and rear axle.
Cast iron rear wagon
For improved durability the complete rear wagon is in one piece ductile cast iron.
Improved robustness
The Husqvarna X series facelift features several improvements. These updates include a more reliable, upgraded PTO belt system, a hardwearing foot plate made of corrugated steel sheet and a more compliant and robust pedal system. For greater rigidity and reliability, the position for the cutting height adjustment has also been moved to the cutting deck.
Greasable mandrels
For easy maintenance and longer lifetime.
Service position
Service postion on the cutting deck facilitates cleaning and service.
Ready for Combi deck
Prepared for the high-performing and unique Combi deck. Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed). Stamped from a single piece of steel plate in a flow-optimized design to deliver best in class mulch result.
Ready for Rear discharge deck
Prepared for a high-capacity Rear discharge cutting deck. Best choice to reach really high productivity with large grass volumes on turf areas with coarser and more heavy grass. Fabricated deck design features welded steel construction for optimized efficiency, robustness and service-life.
